New additionto the G2G Internal Partitioning Range

G2G 8mm I Joint

The G2G 8mm I Joint is now available for use on standard and laminated glass, further enhancing our range of dry joints for use on internal glass partitions.

G2G® glass partitioning joints offer an alternative to silicone, providing a sleek and minimal finish to enhance the overall aesthetics of internal glass partitions. The G2G® suite of profiles are suitable for standard and laminated glass in thicknesses of 8mm, 8.8mm, 10mm, 10.8mm, 12mm and 12.8mm, 15mm, 15.8mm and 16.8mm

G2G® is manufactured using a glass-clear polymer that provides superior clarity when compared with standard PVC dry joints designed for internal glass partitioning. The profiles high bond tape incorporates a removable dust shield and achieves excellent adhesion between glass and profile.

The G2G® range features 10 different dry joints including an innovative door seal system to allow a full range of design options. The range is completed by the frameless wedge gasket, a clear flexible wedge that grips the glass in slim aluminium head and base channels.

To view the full range or to request samples click here.

Dry joints for use on internal glass

Installation of G2G 8mm I Joint

To ensure the best bond between the G2G® dry joint and the glass we suggest that the polished edges are clean, dust and grease free.

It is recommended you ask your glass supplier to cut 0.5mm smaller on the flat edge than is stated for fit and function purposes. It is ok to have a smaller flat edge; a larger flat edge than stated can cause the joint NOT to bond.

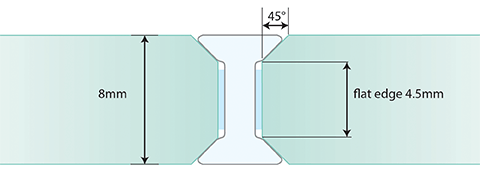

‘I’ Joint – Standard Glass

G2G 8mm I Joint - Standard Glass

For standard glass panels of 8mm the polished flat edge of the glass should be cut to a maximum width of 4.5mm.

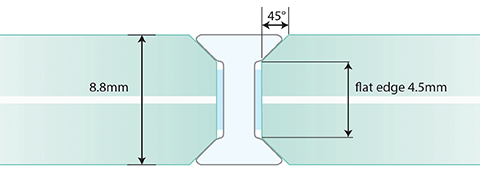

‘I’ Joint – Laminated Glass

G2G 8mm I Joint - Laminated Glass

For laminated glass panels of 8.8mm the polished flat edge of the glass should be cut to a maximum width of 4.5mm
