Extruded Base Pile
Reddiplex Limited’s pile products are manufactured from a neutral
coloured rigid polypropylene base as standard. The base is molecularly bonded to a flexible multi-filament siliconised yarn, which is available in a range of colour options. The density of Meshlock yarn can be adapted to suit your application. This combination allows for easy installation into the seal housing thus eliminating snagging during the fitting operation, whilst at the same time providing a soft seal when in contact with the sealing surface.
Our products are ideal for automatic insertion into assemblies for many different applications, including:
- Insect screens
- Roller shutters
- Sliding wardrobes
- Horizontal sliding windows
- Vertical sliding windows
- Secondary glazing
- Doors
- Draught excluders

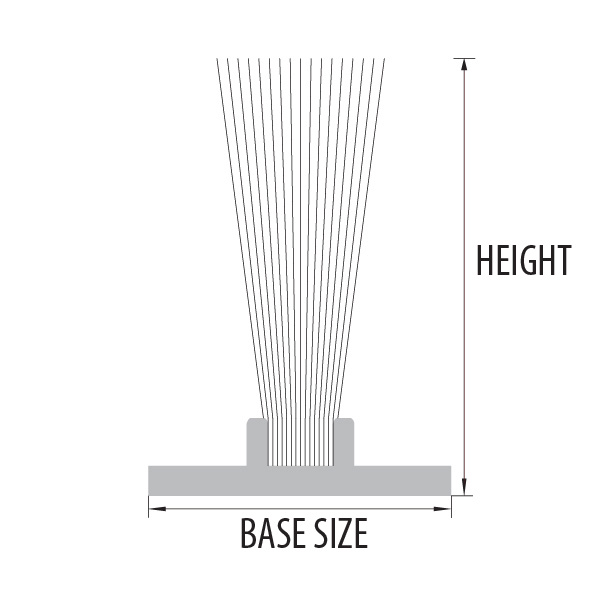

Silhouette
| Base Size | Tolerance | Height | Colour |
|---|---|---|---|
| 3.8mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm | (+/- 0.2mm) | 5.0 to 17.0mm | Black, Grey, White, Brown |

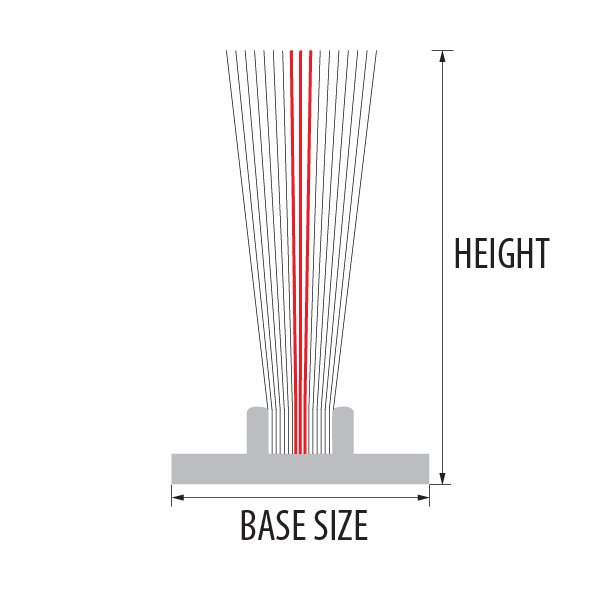

Fibrillated Silhouette
| Base Size | Tolerance | Height | Colour |
|---|---|---|---|
| 3.8mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm | (+/- 0.2mm) | 5.0 to 17.0mm | Black, Grey |

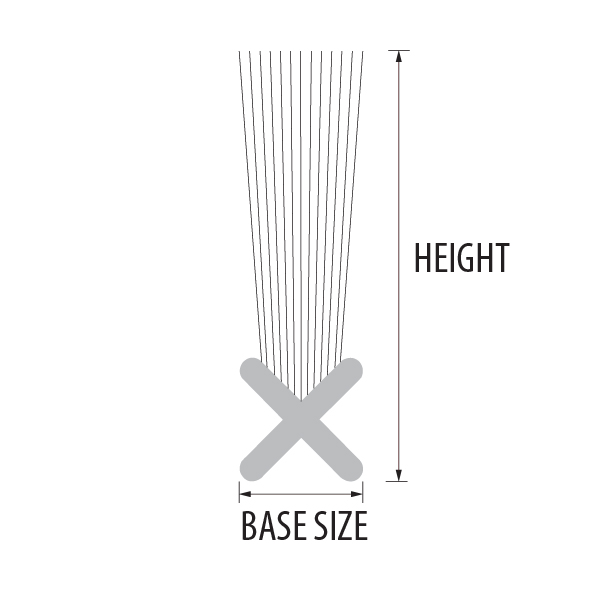

Fringe Pile
| Base Size | Tolerance | Height | Colour |
|---|---|---|---|
| 2.9 x 2.9mm, 3.0 x 3.0mm | (+/- 0.2mm) | 10.0 to 17.0mm | Black, Grey, White, Brown |
Meshlock 45°
| Base Size | Tolerance | Height | Colour |
|---|---|---|---|
| 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm | (+/- 0.2mm) | 8.0 to 17.5mm | Black |
Meshlock 60°
| Base Size | Tolerance | Height | Colour |
|---|---|---|---|
| 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm | (+/- 0.2mm) | 8.0 to 17.5mm | Black |
Security Brush
| Base Size | Tolerance | Height | Colour |
|---|---|---|---|
| 2.8mm, 3.0mm, 3.2mm | (+/- 0.2mm) | 8.0 to 20.0mm | Black |
