Frameless Glass Partitioning

G2G Mobile Header

The G2G glass dry joint range offers the ideal solution for internal frameless glass partitions, giving a professional finish every time. G2G provides a suitable alternative to wet joints in glass offering reduced installation time and onsite wastage. The G2G glass dry joint product range includes revolutionary door seals. Wedges for head and base systems are also available.

Subscribe to our G2G emails

Call to order

Call us on 01905 795432 to discuss your order for G2G

Get a sample

The G2G Range

Glass Dropdown Door Seal

Drop Down Seal
  • Available in Silver anodised and Black gloss finish
  • The plunger can be reversed using a cross-head screwdriver, making it suitable for both left and right hand hinged doors
  • Accommodates a threshold gap height of up to 14mm
  • Suitable for framed and frameless doors
  • Can be cut down by a maximum of 125mm
  • Two part, easy to fit using double sided tape
  • Full fitting instructions provided
  • Identified as G2G for full traceability
  • Cycle tested to at least 200,000 cycles

G2G Partitioning Dry Joints

90 Degree I Joint

I Joint

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 8 & 8.8mm, 10 & 10.8mm, 12 & 12.8mm, 15mm and 16.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • Available in both Clear and Black
H Section

‘H’ Section

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Allows for variance in glass arris meaning the flat edge dimension becomes less critical
  • Supplied with self adhesive tape
  • Available in both Clear and Black
  • 30 lengths per pack
Abutment Joint

Abutment Joint

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • Dual function as a corner section
  • 30 lengths per pack
Square Corner

Square Corner Joint

  • Suitable for standard and laminated glass types
  • Provides additional protection to the corner junction
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm and 16.8mm glass thicknesses
  • Supplied with self adhesive tape
  • Available in both Clear and Black
  • 30 lengths per pack
Flexible I Joint

Flexible ‘I’ Joint

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • Flexible end sections allow for variance on the edge chamfers of the glass panels. The result being that the polished ‘flat’ edge dimension becomes less critical.
  • 30 lengths per pack
  • UK Patent Application No. 2 538 858
Minimal Corner Joint

Minimal Corner Joint

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • 30 lengths per pack
90 Degree Corner Protection Joint

90° Corner Protection Joint

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • Offers additional protection to the outside corner section
  • 30 lengths per pack
3 way joint

3-Way Joint

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • 30 lengths per pack
135 Degree Connection Joint

135° Connection Joint

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • 30 lengths per pack

Banded Glazing Strip

Banding Strip
  • Creates horizontal and vertical banding across glazed partitions.
  • Available in 25 x 1.5mm and 25 x 3mm thicknesses
  • Self-adhesive strip for ease of application
  • Cut to length on site no specialist tools required
  • Can be used on doors and walls

Head and Base Tear Off Wedge

The wedges grip the glass allowing a simple and clean installation in slim aluminium head and base channels. The tear-off enables compatibility with a range of companies aluminium framing systems. Suitable for standard glass thicknesses of 10 and 12mm, and laminated glass thicknesses of 10.8 and 12.8mm.

Tear Off Wedge

Tear Off Wedge

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield

G2G Door Seals

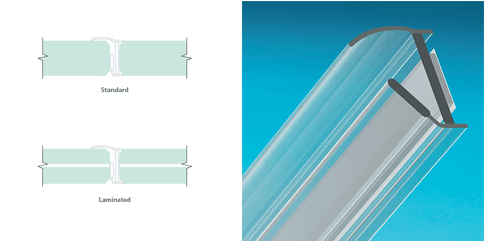

side seal for frameless doors

Side Seal for Frameless Doors

  • Suitable for use on single action, single doorsets
  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • A nominal gap of 5mm clearance is required
  • For retrofit applications a gap of 3.5-8mm is suitable
  • 15 lengths per pack
  • UK Patent Application No. 2 535 631
Door Top and Bottom Seal

Top and Bottom Seal for Frameless Doors

  • Suitable for standard and laminated glass types
  • Accommodates glass thicknesses of 10 & 10.8mm, 12 & 12.8mm glass thicknesses
  • Supplied with self adhesive tape and removable dust shield
  • Can accommodate a threshold gap of 12mm
  • 15 lengths per pack

G2G – Glass Dry Joints – Installation Guide

The following points should be taken into consideration when installing G2G:

G2G Seal
  • To ensure the best bond between the G2G profile and the glass an application temperature between 18 to 35 degrees centigrade is recommended.
  • It is recommended that where possible the joints and glass are equalised to room temperature 24 hours prior to fitting.
  • A quality polished edge works best for maximum bond strength. When fitting the joints on site it is important that these polished edges are clean, dust and grease free.
  • An alcohol wipe is recommended.
  • It is essential that every panel is shimmed and plumbed (particular the first panel) vertically/horizontally and centralised in the base and head channels.
  • It is recommended that prior to fitting the joint each following glass panel is placed side by side to check for bow and swapped for a flush panel if there are any showing this affect.
  • It is recommended that ratchet strap/suckers are used when fitting panels to achieve the best contact pressure.
  • The G2G tape has excellent initial tack and contact bond in most conditions.
  • It strengthens to its maximum bond strength 12 hours after fitting.
  • The compressive qualities of the G2G tape takes up some tolerance variations in the glass. This can be maximized through ensuring the glass has been cut accurately on well maintained machinery.

Please note these are for guidance only, Reddiplex take no responsibility for the overall installation of a partitioning system. All of the guidance and illustrations contained are given as guidance only and specialist advice should be sought for individual applications.

G2G – Glass Door Seals – Installation Guide

  • A quality polished edge works best for maximum bond strength. When fitting the joints on site it is important that these
    polished edges are clean, dust and grease free.
  • An alcohol wipe is recommended.
  • A nominal gap of 5mm clearance is required to be left between the door leaf and the adjoining panes.
  • For retrofit applications a gap of between 3.5-8mm is suitable.
  • To ensure effective sealing at the threshold, the flexible fin of the Top and Bottom seal should be lined up with the
    floor and then applied to the door panel.
  • Where a glazed over panel is used the Side Seal should be used, at the head. When installed it should be positioned the
    same direction as on the leading edge.
  • Trimming will be required of the side seal flippers around top and bottom hinge patches and additional hardware.
  • Top and bottom seal should be fitted whilst the door is in a closed position. The top and bottom seal can accommodate
    a threshold gap of up to 12mm.

Please note these are for guidance only, Reddiplex take no responsibility for the overall installation of a partitioning system. All of the guidance and illustrations contained are given as guidance only and specialist advice should be sought for individual applications.

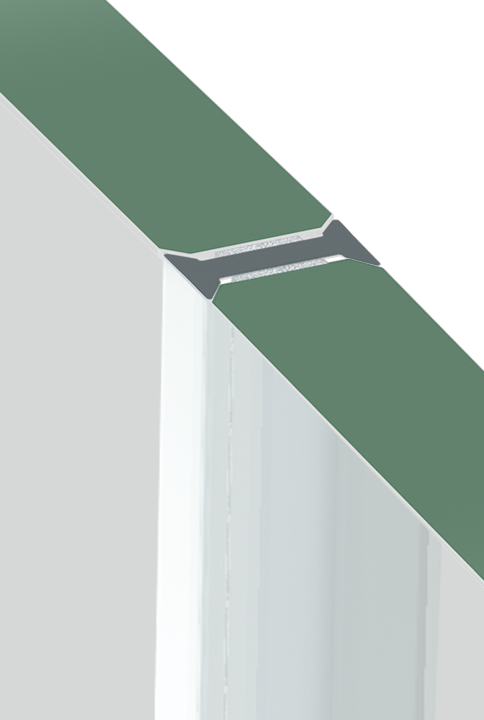

door illustration
door joint illustration

FAQ

Q. What glass thicknesses do the G2G components accommodate?

A. The G2G range is suitable for 10 and 10.8mm glass, 12 and 12.8mm glass, and 15mm glass.

Q. Will the joints fit on standard and laminated glass?

A. Yes, all have been designed to do so. Laminated glass may see the joint dip below the surface; however,
this is widely accepted because it does not break the surface eye line.

Q. What type of edge finish is recommended?

A. A quality polished edge works best for maximum bond strength. When fitting the joints on site, it is important that these polished edges are clean, dust and grease free; the use of an alcohol wipe to clean the flat polished edges is recommended.
It is recommended to ask your glass supplier to cut 0.5mm smaller on the flat edge than is stated for fit and function purposes.
It is ok to have a smaller flat edge;a larger flat edge than stated can cause the joint NOT to bond.

Q. What Bevel / Chamfer / Arris are required?

FAQ Bevel Chamfer Arris

A. To ensure maximum performance, the glass should be cut with a flat polished edge and a bevel of 45 degrees, as shown in the illustration above. This is the same for use on both standard and laminated glass:

Q. What polished edge width is required?

A. Standard glass – all G2G profiles:
standard g2g

For standard glass panels of 10, 12 and 15mm, the polished flat edge of the glass should be cut to a maximum width of 6.5mm for 10mm glass, 8.5mm for 12mm glass, and 11.5mm for 15mm glass.
This is the same for all of the G2G – glass partition joints, when using standard glass panels.

NB: it is recommended to ask your glass supplier to cut ½mm smaller on the flat edge than is stated for fit and function purposes.
It is ok to have a smaller flat edge; a larger flat edge than stated can cause the joint NOT to bond.

Laminated glass – all G2G profiles:
laminated g2g profiles

For laminated glass panels of 10.8, 12.8 and 15.8mm, the polished flat edge of the glass should be cut to a maximum width of 6.5mm for 10.8mm glass, 8.5mm for 12.8mm glass, 11.5mm for 15.8mm glass, and 13.5mm for 16.8mm glass.
This is the same for all of the G2G – glass partition joints, when using laminated glass panels.
NB: it is recommended to ask your glass supplier to cut ½mm smaller on the flat edge than is stated for fit and function purposes. It is ok to have a smaller flat edge; a larger flat edge than stated can cause the joint NOT to bond.

Standard and laminated glass – Flexible ‘I’ Joint profiles:
flexible i joint

For Flexible ‘I’ Joints, the flat edge dimension is the same as the standard ‘I’ Joint but less critical.

Q. Will the joint tape migrate (leak) through to the liner on the laminated glass?

A. No evidence of this has been reported on our test pieces.

Q. Will the joints take up potential glass bow?

A. Yes, to a degree. The gel type tape used has compressive qualities, which helps with tolerance. However, it is essential to use a glass supplier that processes on well-maintained machinery to minimise the possibility of excessive glass bow.

Q. Can the joints be fitted in cold conditions?

A. Yes, however fitting joints in conditions below room temperature will affect the bond. It is recommended that, where possible, both the joints and glass are equalised to room temperature 24 hours prior to fitting. The recommended application temperature is 18°C – 35°C.

Q. Does the tape lose its strength over time?

A. No, the opposite is true for these joints. The tape has excellent contact bond and reaches its maximum bond strength in 12 hours after fitting.

Q. Are there any special fitting requirements?

A. The following guidance should be taken into consideration when fitting G2G:
• To ensure the best bond between the G2G profile and the glass, a recommended application temperature between 18°C – 35°C is advisable.
• It is recommended that, where possible, the joints and glass are equalised to room temperature 24 hours prior to fitting.
• A quality polished edge works best for maximum bond strength. When fitting the joints on site it is important that these polished edges are clean, dust and grease free, an alcohol wipe is recommended.
• It is essential that every panel is shimmed and plumbed (particularly the first panel) vertically/horizontally and centralised in the base and head channels.
• It is recommended that prior to fitting the joints, every subsequent glass panel is aligned side by side with the fitted panel to check for bow and swapped for a flush panel if there are any showing this effect.
• It is recommended that ratchet strap/suckers are used when fitting panels to achieve the best contact pressure.
• The tape used has excellent initial tack and contact bond in most conditions and reaches its maximum bond strength in
12 hours after fitting.
• The gel type tape used has compressive qualities which help with tolerance, however it is essential the glass has been cut on well-maintained machinery to minimise this potential affect.
Please note these are for guidance only. Reddiplex accept no responsibility for the overall installation of a partitioning system.

Q. Can I fit manifestation graphics over the joints?

A. Yes. The joints have been designed to give enhanced sight lines across the glass panels, in turn reducing the interference with any graphics that may run over the joints.

Q. Are there any specific storage requirements for the G2G profiles?

A. No. The G2G system should generally be stored at room temperature and normal humidity (50-70%) but it can withstand a temperature range of between -40°C to +150°C. However, during installation, it is recommended that both the glass and the
G2G profile are brought to within a temperature range of 18°C – 35°C.

Q. What colour are the joints?

A. Clear. The joints are designed to be as clear as possible to ensure the maximum light transmission and limited impact on the overall appearance of the system.

Q. Are the joints fire rated?

A. No. The joints have not been designed for use in fire rated systems.

Q. Are the joints UV stable?

A. The joints have been primarily designed for internal use. We are currently age testing to demonstrate the UV stability of the joints in external applications.

Q. Are the joints impact tested?

A. No, although we are confident that the joints will work under these conditions, it is impossible to test this in every system on the market.

Q. Are the joints acoustic tested?

A. No, although we are confident that the joints will perform well under these conditions, it is impossible to test this in every system on the market.


BSIBSI 14001sucuri verifiedSecurity Certificate
©1969 - 2023 Reddiplex Ltd is a limited company registered in England and Wales: No. 2922638. Vat No. 488055709.
  • Returns Policy
  • Privacy Policy
  • Terms and Conditions
  • Cookie Policy

This site uses cookies. By continuing to browse the site, you are agreeing to our use of cookies.

OK

Cookie and Privacy Settings



How we use cookies

We may request cookies to be set on your device. We use cookies to let us know when you visit our websites, how you interact with us, to enrich your user experience, and to customize your relationship with our website.

Click on the different category headings to find out more. You can also change some of your preferences. Note that blocking some types of cookies may impact your experience on our websites and the services we are able to offer.

Essential Website Cookies

These cookies are strictly necessary to provide you with services available through our website and to use some of its features.

Because these cookies are strictly necessary to deliver the website, refusing them will have impact how our site functions. You always can block or delete cookies by changing your browser settings and force blocking all cookies on this website. But this will always prompt you to accept/refuse cookies when revisiting our site.

We fully respect if you want to refuse cookies but to avoid asking you again and again kindly allow us to store a cookie for that. You are free to opt out any time or opt in for other cookies to get a better experience. If you refuse cookies we will remove all set cookies in our domain.

We provide you with a list of stored cookies on your computer in our domain so you can check what we stored. Due to security reasons we are not able to show or modify cookies from other domains. You can check these in your browser security settings.

Other external services

We also use different external services like Google Webfonts, Google Maps, and external Video providers. Since these providers may collect personal data like your IP address we allow you to block them here. Please be aware that this might heavily reduce the functionality and appearance of our site. Changes will take effect once you reload the page.

Google Webfont Settings:

Google Map Settings:

Google reCaptcha Settings:

Vimeo and Youtube video embeds:

Accept settingsHide notification only
Scroll to top
