Refrigerated Lorry Door Seals

Modular Lorry Door Seals

Reddiplex revolutionary modular lorry door seals offer a sustainable and reliable sealing solution for the refrigerated vehicle industry. Lorry door seals are known to experience wear and tear in their changeable and erratic environment. When a seal is no longer sufficient, internal temperature can no longer be controlled meaning the whole system requires replacing.

Reddiplex’s modular hard back seal provides an innovative, sustainable system that succeeds in the long term. The revolutionary design incorporates manoeuvrable EPDM bubble and flipper components allowing a multitude of configurations. Each component can be replaced independently guaranteeing minimal maintenance costs and facilitating long term performance, resulting in the overall system being the ideal choice for refrigerated vehicles.

Modular Lorry Door Seals

Features and Benefits

  • Temperature resistance -15°C to 60°C
  • Low surface coefficient of friction
  • Excellent sealing properties
  • Premium heavy duty
  • Recyclable EPDM components
  • Durable
  • Replaceable
  • Interchangeable
  • Sustainability
  • R5862 - Straight System

    .

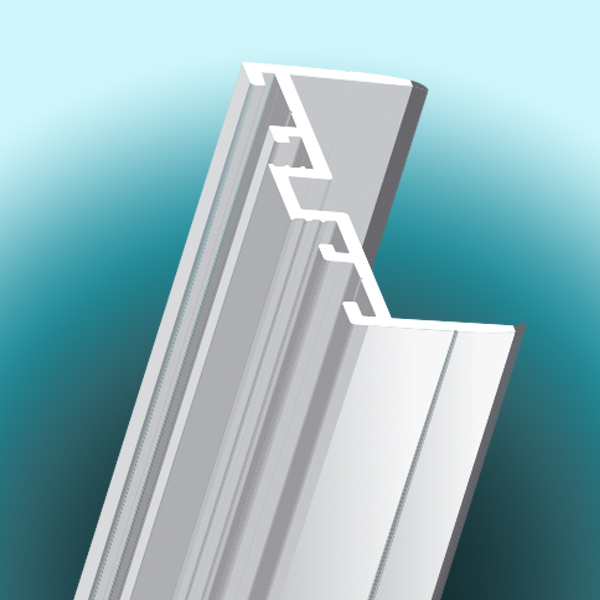

R5862 Straight Lorry Door Seal System
R5862 Straight Lorry Door Seal System
R5862
R5862
  • R5863 - Angled System

    .

R5863 Angled Lorry Door Seal System
R5863 Angled Lorry Door Seal System
R5863
R5863

The following EPDM components are suitable for insertion in both straight and angled systems, facilitating a multitude of seal configurations.

R4917

R4918

R4919

R6373

R4917
R4917

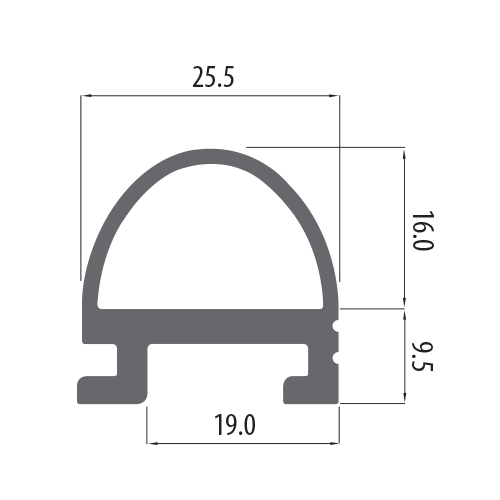

R4917 Technical Drawing
R4917 Technical Drawing
R4918
R4918
R4918 Technical Drawing
R4918 Technical Drawing

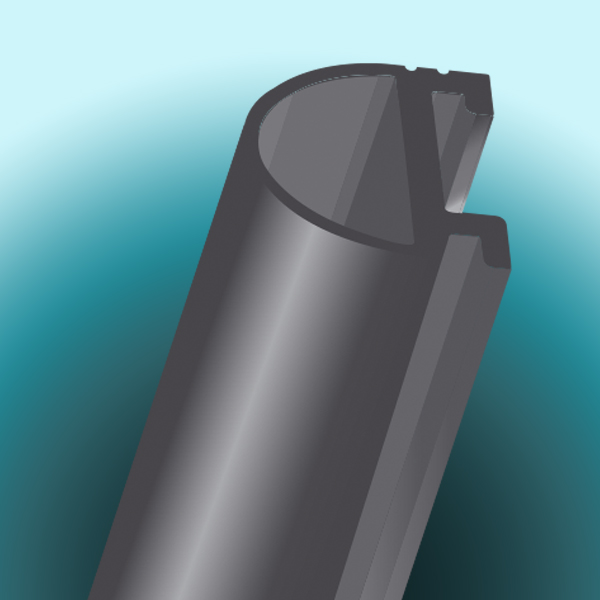

R4919
R4919

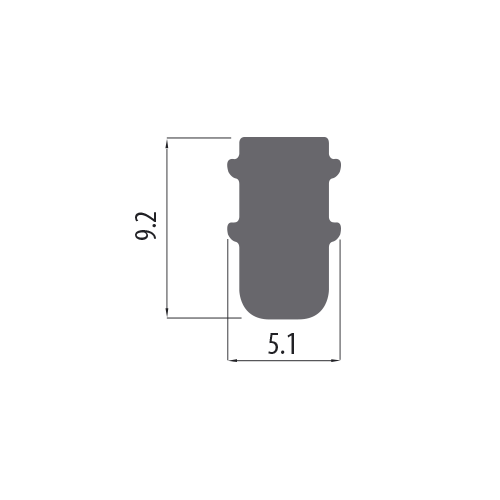

R4919 Technical Drawing
R4919 Technical Drawing

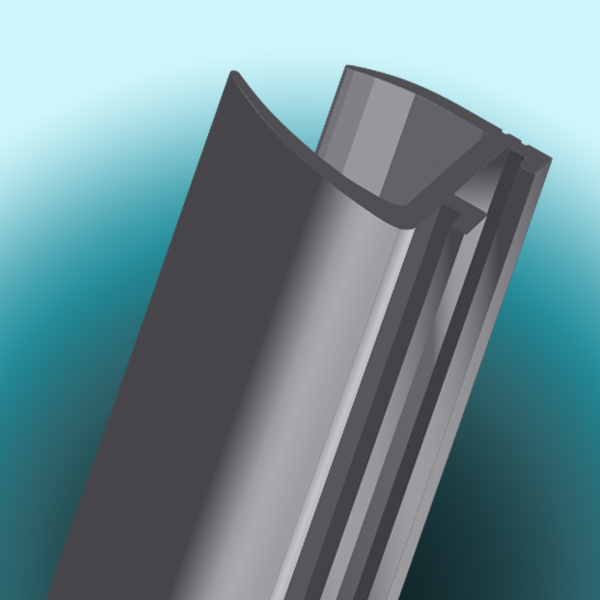

R6373
R6373
R6373 Technical Drawing
R6373 Technical Drawing

Trans-Classic Lorry Door Seals

Our trans-classic lorry door seals offer a co-extrusion of PVC-U and Nitrile PVC. The design utilises a rigid carrier and flexible fins. We offer a wide variety of styles and shapes through different combinations of flexible bubbles and flippers, all relevant to the size of the seal.

R7063

R5363

R5136

R4905

R4795

R7063
R7063
R5363
R5363
R5136
R5136
R4905
R4905
R4795
R4795

R4794

R4224

R3954

R3944

R3851

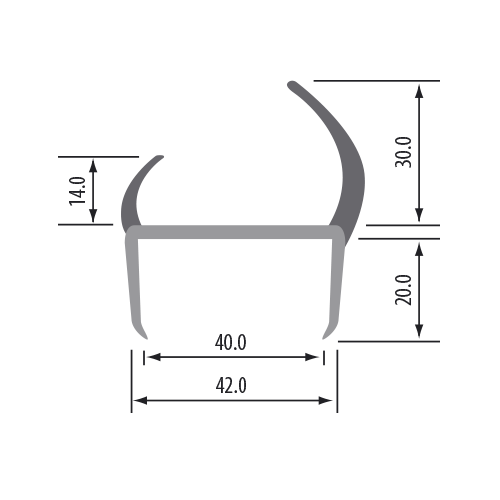

R4794
R4794

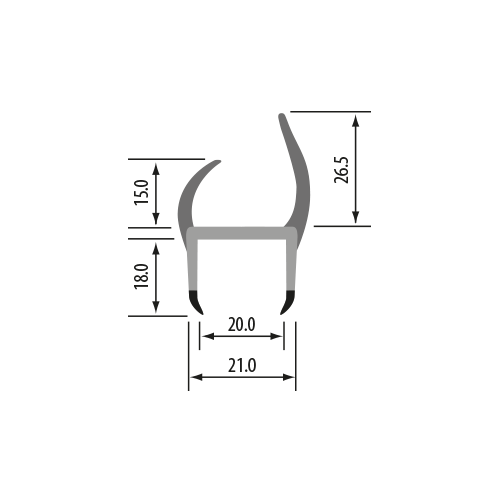

R4224
R4224
R3954
R3954

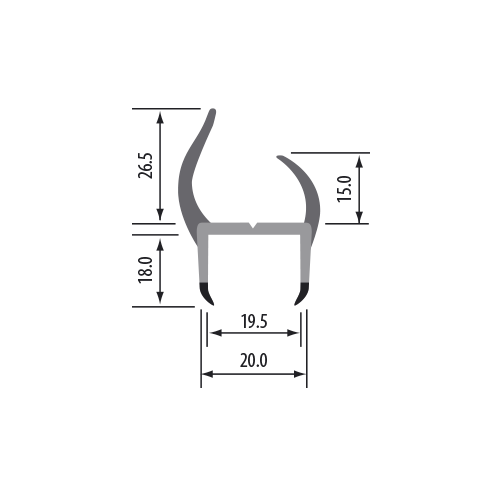

R3944
R3944
R3851
R3851

R3823

R3719

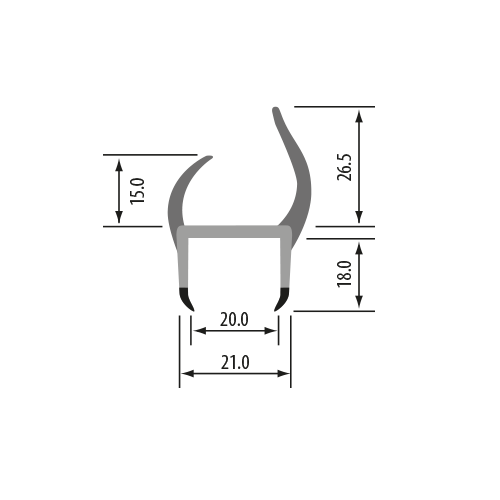

R3823
R3823
R3719
R3719

Custom Extrusion and Automotive

Reddiplex have always excelled at custom extrusion and the commercial refrigeration industry is no exception. We have provided a complete solution for numerous companies operating in the transport sector, designing and delivering a bespoke lorry door seal system that not only meets but also exceeds customer expectations. Our expertise of the extrusion process allows us to assist you in the design of a solution that’s not only suitable for your vehicle, but also helps you to reduce costs and increase the effectiveness of your extrusion.

Our custom capabilities expand beyond the design of your profile; Reddiplex has a wide range of materials that are suited to this application and we can advise you which material would be best suited to your lorry door seal system. High grade TPR has emerged as a customer favourite for the commercial refrigeration industry due to characteristics that enable it to excel in refrigerated transport applications:

  • Resistance to low & high temperatures from -40°C to +140°C
  • Good tear & abrasion resistance
  • Excellent resistance to chemicals & weathering
  • High impact strength – Tensile Strength = 10MPa (Ordinary TPR = 5.5MPa)
  • Low compression set
  • Colourability
  • Recyclable
