Harmony Corner

Corner – 40dB

Decibel rating: 40dB

Key benefits: Minimal closing force, multi-point contact, can be retrofitted

Application: Head & jambs

Tested to: BS EN ISO 10140-2: 2010

Material type: Co-extruded PVC

Fixing: Self-adhesive on two faces

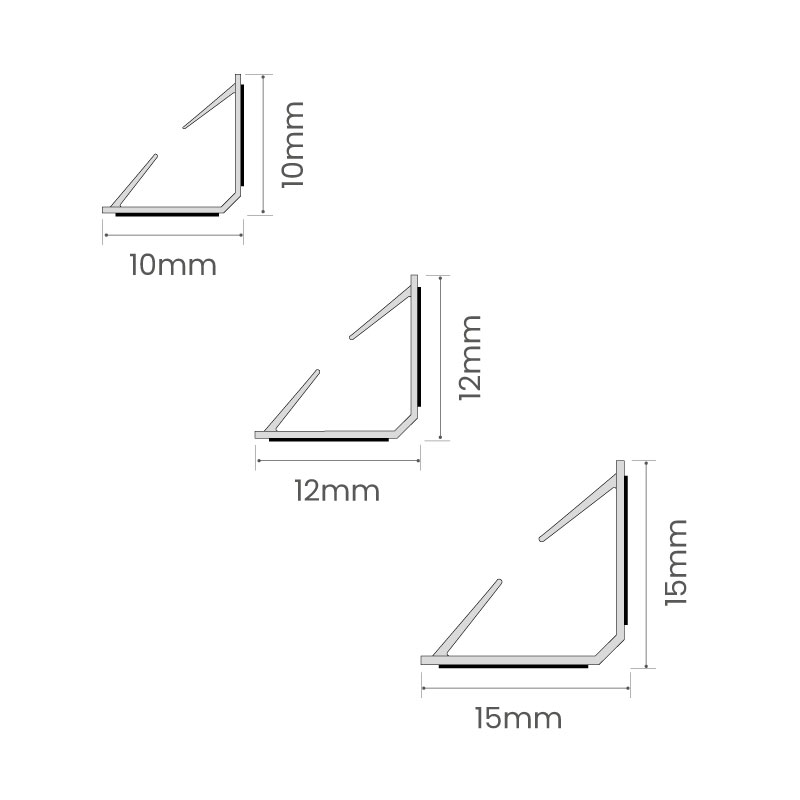

Product Code	Dimensions	Colour Options	Length	Lengths per Pack
11300	10 x 10mm	Black White Brown	2.1m	100
11301	12 x 12mm	Black White Brown	2.1m	100
11302	15 x 15mm	Black White Brown	2.1m	100

Installation Instructions

The product must be installed to allow the proper opening and closing of the door assembly, with a minimal amount of force. The door assembly should be checked periodically to ensure proper operation. The product has been designed to provide an effective acoustic seal in the gap around a perimeter of a pedestrian doorset assembly.

The frame needs to be clean and free from any dust particles.
Avoid applying the seal to newly decorated surfaces.
Peel release the liner adhesive back by approximately 150mm, from the product, exposing the back of the adhesive.
Position the seal in the top corner and gently apply an even pressure to the seal.
Gradually remove the release liner from along the full length of the seal, ensuring that the seal is positioned correctly against the rebate and the main frame section.Excessive pressure used during the application could potentially delaminate the flippers from the main body of the component.
Dispose of the release liner using the appropriate method.
